Structural modular joints JOINTEC GR

Giunti Jointec GR AN 51 Profilitec Sezione Contestualizzata Giunti Jointec GR Profilitec

Structural modular joints JOINTEC GR

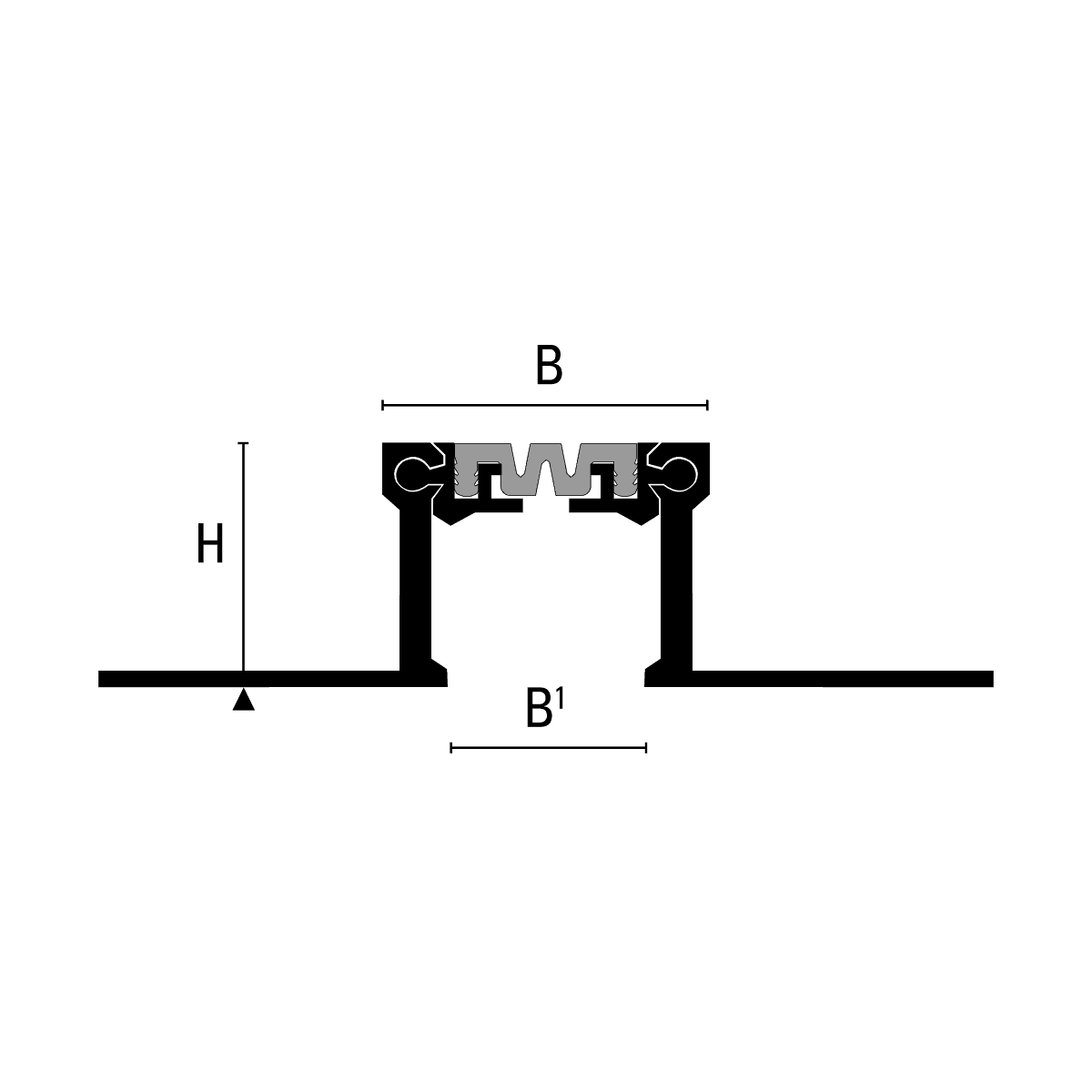

JOINTEC GR aluminum structural expansion joints are composed of twin metal profiles that allow rotational movement between the metal flanges and the central synthetic rubber insert. Designed to bear loads of large scale buildings or building compounds, they can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement / expansion joints, chosen according to the expected use and flooring type.

How to install joints JOINTEC GR

INSTALLATION: • Slide the central metal insert into the side flanges. • Snap the synthetic rubber insert into the profile before aligning and positioning the expansion joint on site. • If necessary, protect the rubber insert with masking tape. • Anchor the side flanges with appropriate screws, 11-13/16’’ (30cm) on center, on both sides of the profile. • Lay mortar bed over the side flanges, and install the tiles as normal.
