COFLEX CBR joints: coupling of profiles and synthetic insert
COFLEX CBR joints: coupling of profiles and synthetic insert

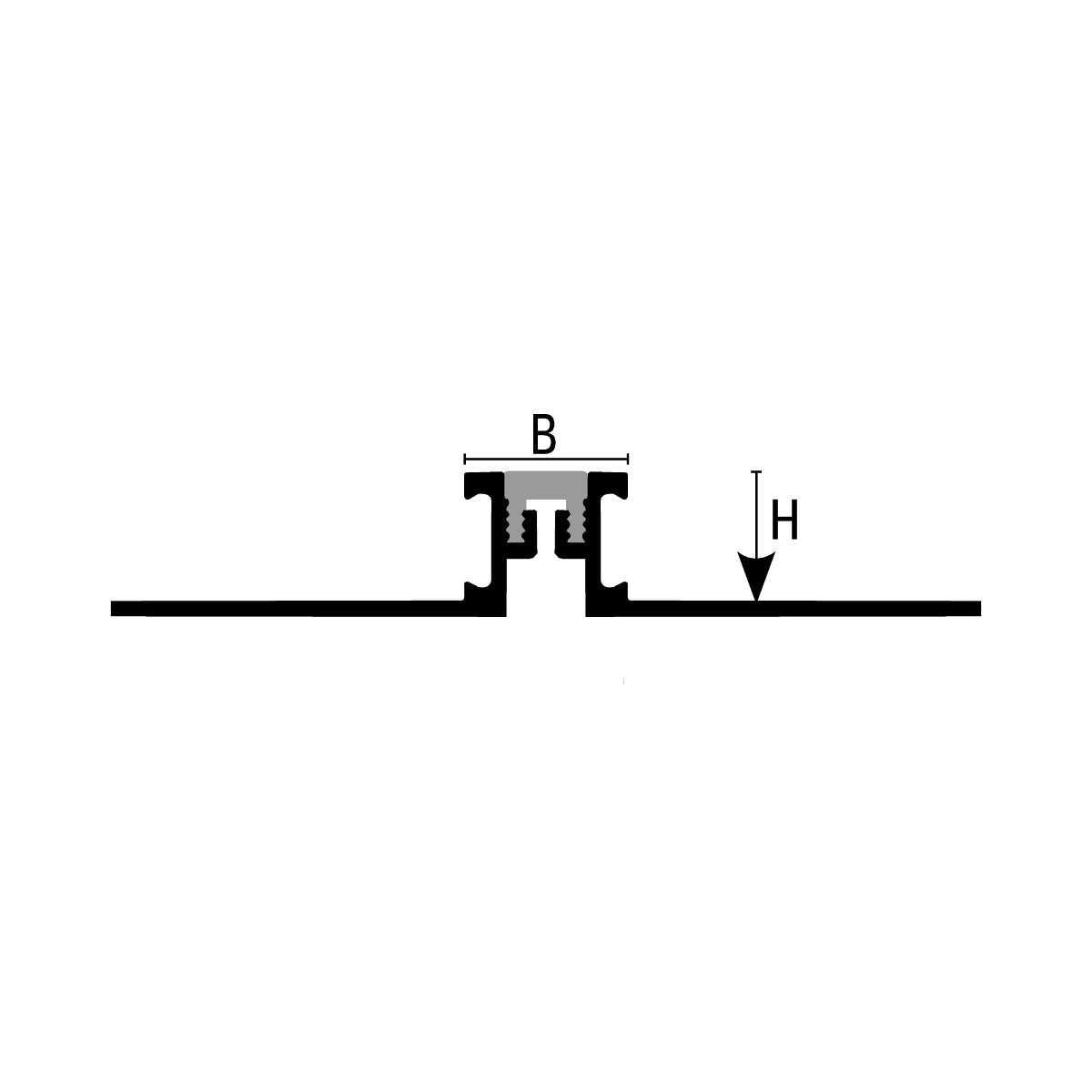

COFLEX CBR is composed of a twin double metal profile to host the internal rubber seal. This product has been designed to ensure a certain grade of protection to the tile and relative work load it may have to bear. The synthetic rubber insert efficiently compensates and absorbs flooring movements along with the covering material. COFLEX CBR is suitable to bear distributed weights and tensions. Select a joint with the height matching exactly the tile thickness, the joint must not rise above the level of covering surface but should be laid 0,5 ÷ 1 mm below the edge of the tiles. Suggested flooring bays 10-25 m² (as per standard UNI 11499:2013). Typical flooring areas: retail shops, hotels, sporting centers and schools.
-
Coflex CBR-AN Natural aluminium
The aluminium profile is generally advised for indoor laying jobs and in areas which are less subject to mechanical impact and stress.
Aluminum / Natural
BxH Art. Color 10x4,5 CBR 45 AN23 Embossed Cement Grey 10x6 CBR 60 AN23 Embossed Cement Grey 10x8 CBR 80 AN23 Embossed Cement Grey 10x10 CBR 100 AN23 Embossed Cement Grey 10x12,5 CBR 125 AN23 Embossed Cement Grey 10x15 CBR 150 AN23 Embossed Cement Grey 10x20 CBR 200 AN23 Embossed Cement Grey 10x4,5 CBR 45 AN51 Black 10x6 CBR 60 AN51 Black 10x8 CBR 80 AN51 Black 10x10 CBR 100 AN51 Black 10x12,5 CBR 125 AN51 Black 10x15 CBR 150 AN51 Black 10x20 CBR 200 AN51 Black
