Jointec GAD

JOINTEC GAD structural floor joints

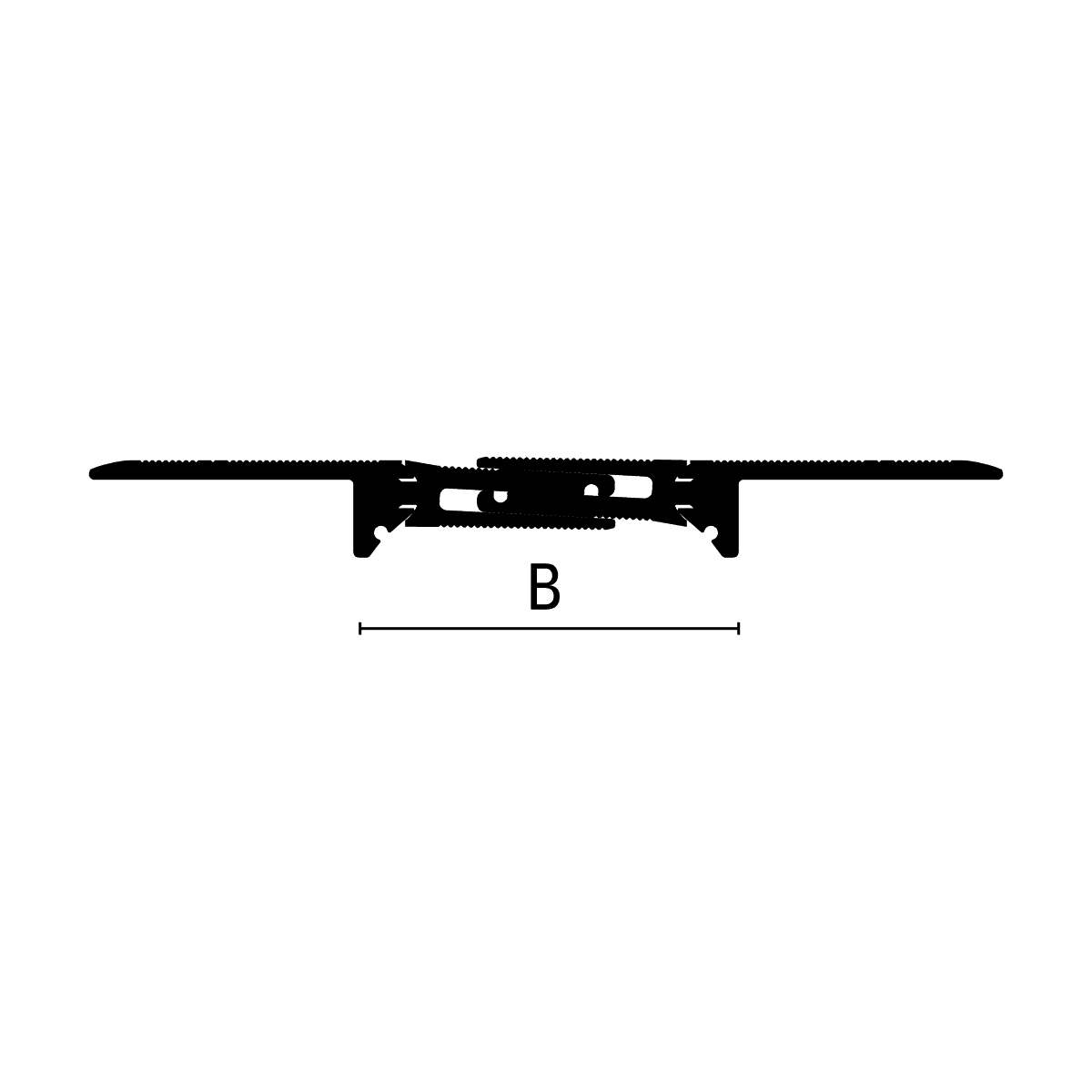

Giunti Jointec GAD AN Profilitec Sezione Contestualizzata Giunti Jointec GAD Profilitec

JOINTEC GAD structural floor joints

JOINTEC GAD aluminum sliding expansion joints are floor profiles structurally designed to bear loads of large scale buildings or building elements. They can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement/expansion joints, chosen according to the expected use and flooring type.

How to install structural joints

INSTALLATION: • Anchor the side plates with: a) appropriate screws, 7-3/32’’ (18cm) on center, on both sides of the profile and b) two-part epoxy adhesive.
