COFLEX CMB modular joint for mortar bed


COFLEX CMB modular joint for mortar bed
COFLEX CMB is a modular, mortar bed expansion joint: a co-extruded wide-flanged base profile which is interlocked with COFLEX CM modular clips that adapt the profile to almost any height. The profile is conceived to subdivide the mortar bed into bays according to the underlying slab. As the wide flanges securely position the profile, it can also be used as formwork.
Modular joints system COFLEX CMB

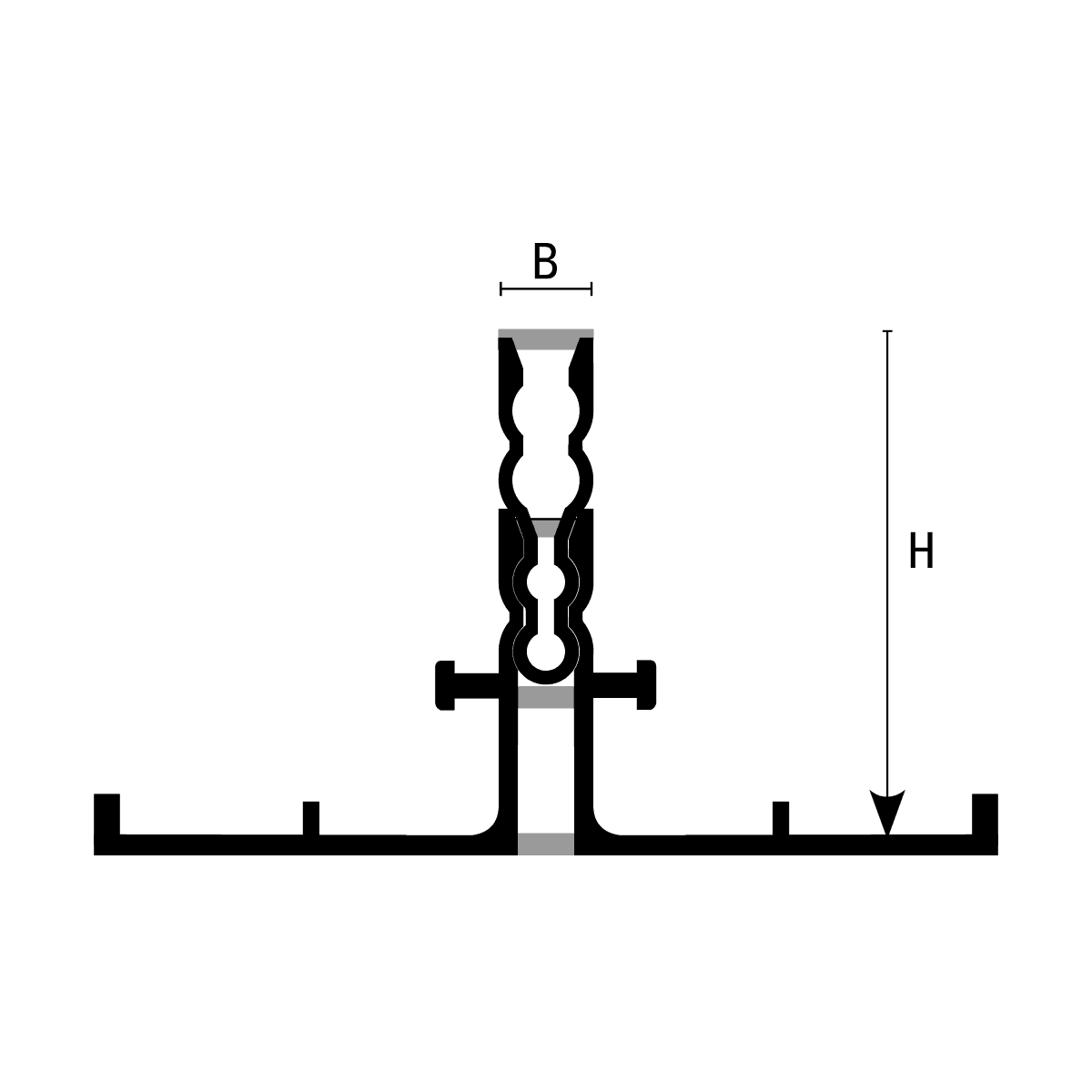

The co-extruded base profile is composed of two synthetic resins. The base flanges are in made of rigid Resil while the central joints are in a softer Resinflex. The system can be easily adapted to almost any height by interlocking the modular COFLEX CM clips: minimum height of 1-3/16’’ (30mm), with vertical clicks at 9/16’’ - 3/16’’ (15 - 20mm) intervals. The COFLEX CMB modular, mortar bed expansion joint should be used with an additional expansion joint at the tile floor level, such as a COFLEX CA profile, to allow differential movement and prevent tile cracking and tenting.
-
Coflex CMB-P in modular synthetic resin
This synthetic resin profile is highly flexible, durable and resistant to mildew, bacteria, weathering, corrosion, wear and UV rays. Suitable for indoor and outdoor applications; the profile section provides limited protection to the tile edge.
H = mm Art. 30 CMB 300 P23 45 CMB 450 P23 60 CMB 600 P23 30 CMB 300 P
